Open to opportunitiesCCNA Candidate

Building resilient cloud & network infrastructure.

Solutions Architecture & Enterprise Infrastructure. I translate complex business operations into high-availability systems that stay online when everything else fails.

MB Mamoun Benyazed
About

Where networking
meets the cloud.

My name is Mamoun Benyazed and I'm an ASU W. P. Carey business student graduating in Dec 2026, combining practical IT experience with a deep focus on networking and cloud architecture. I'm currently positioning myself for roles in Systems Engineering and Technical Product Management, where I can design resilient, fault-tolerant systems.

To back it up, I'm tackling the CCNA and building production-grade AWS architectures.

Flagship Project

Featured architecture

▶ Launch interactive demo
01 · INTERACTIVE DEMO

Event-Driven SaaS Platform on AWS

An interactive, explorable production topology featuring edge security, a multi-AZ VPC of Fargate microservices, an asynchronous event backbone, and cross-cutting security, observability & CI/CD planes. Filter any plane or run a live request trace right in the browser.

  • Edge & Network Security. WAF-fronted edge protecting a multi-AZ VPC that isolates public and private service tiers.
  • Event Backbone. Decoupled Fargate microservices communicating asynchronously through an event-driven messaging layer.
  • Cross-Cutting Planes. Toggle security, observability, and CI/CD overlays to see how each concern threads through the platform.
AWS Fargate Multi-AZ VPC Event-Driven Microservices Observability CI/CD
Launch Interactive Demo ↗
View all projects ↗
Hands-On Networking

Completed Packet Tracer labs

LAB 01 · SCALING NETWORKS

Resilient Campus LAN with First-Hop Failover

A redundant multi-switch, multi-router campus topology engineered to survive link and gateway failures with zero manual intervention. Built and verified end to end in Cisco Packet Tracer, every layer is proven with live command output and a real failover capture.

  • Link Aggregation. An LACP EtherChannel bundles two physical links into one logical trunk for added bandwidth and instant resilience if a member link drops.
  • Loop-Free Switching. Rapid PVST+ spanning tree elects a root bridge and blocks redundant paths, keeping the Layer 2 domain stable and loop-free.
  • First-Hop Redundancy. HSRP presents a single virtual gateway across two routers, failing over automatically when the active router goes down.
  • Dynamic Routing. EIGRP converges across the serial WAN link and propagates a redistributed default route for full end-to-end reachability.
EtherChannel / LACP Rapid PVST+ HSRP EIGRP 802.1Q Trunking Serial WAN

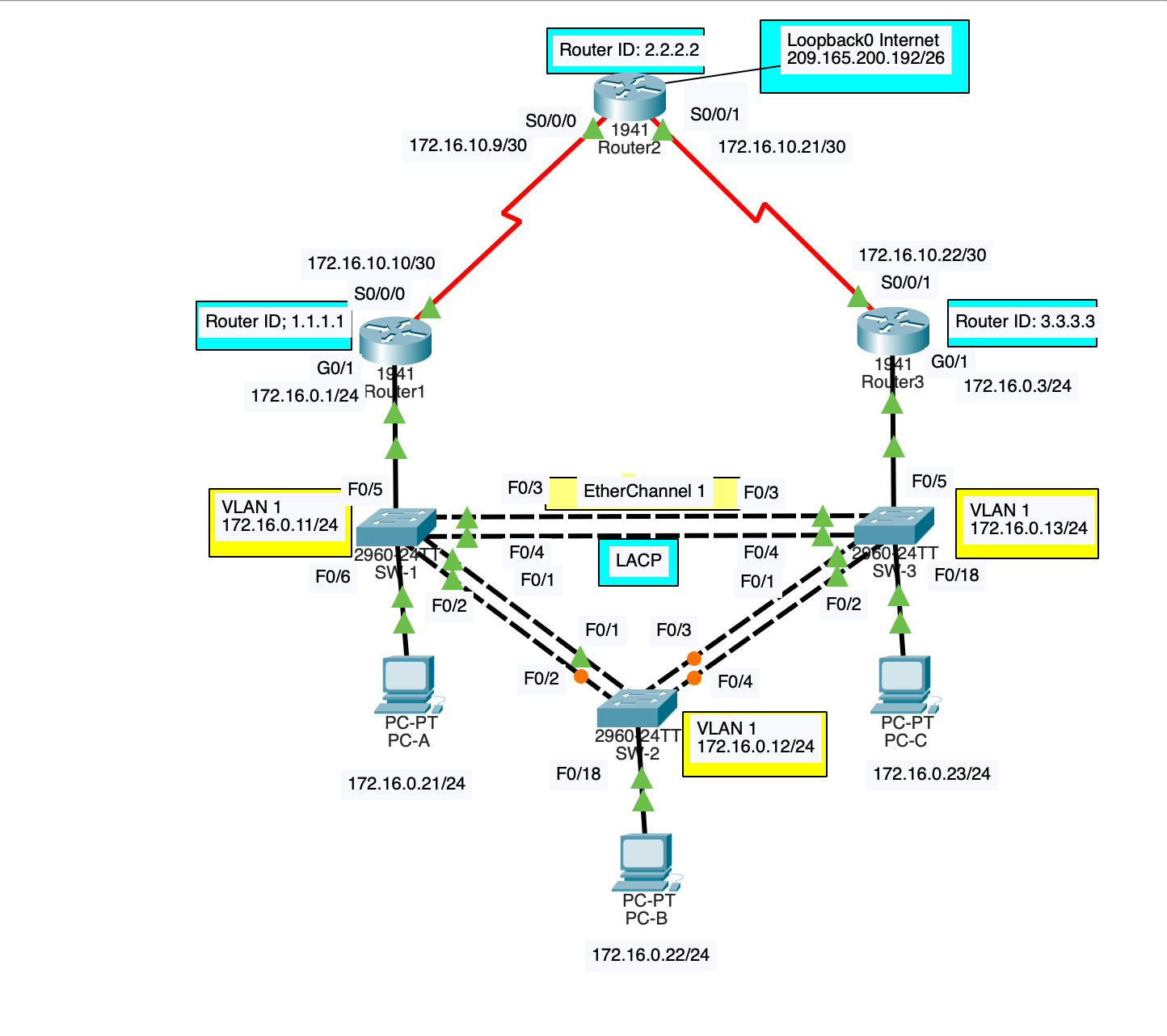

Lab topology diagram
Network Topology

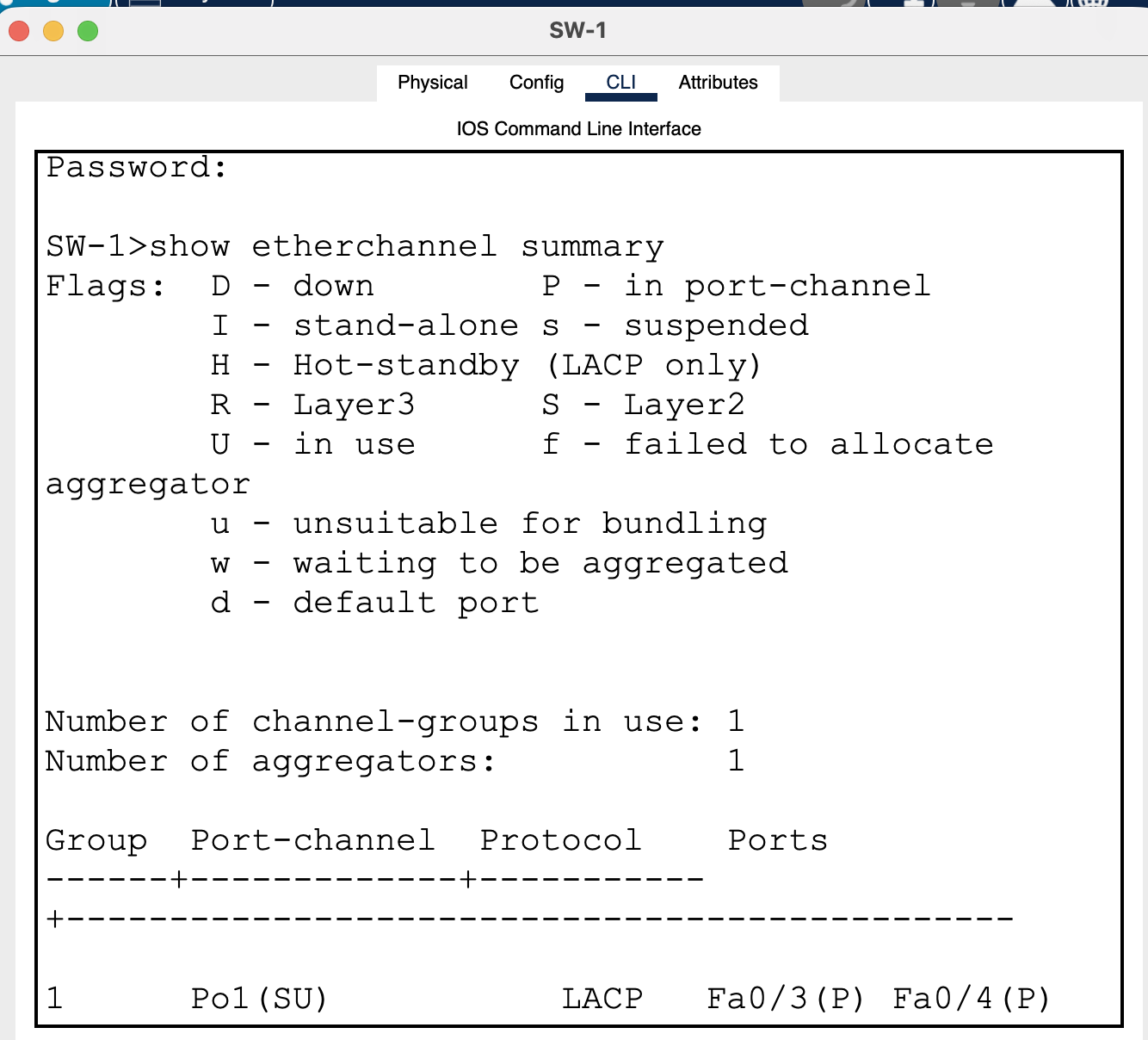

EtherChannel summary output
EtherChannel · LACP Bundle

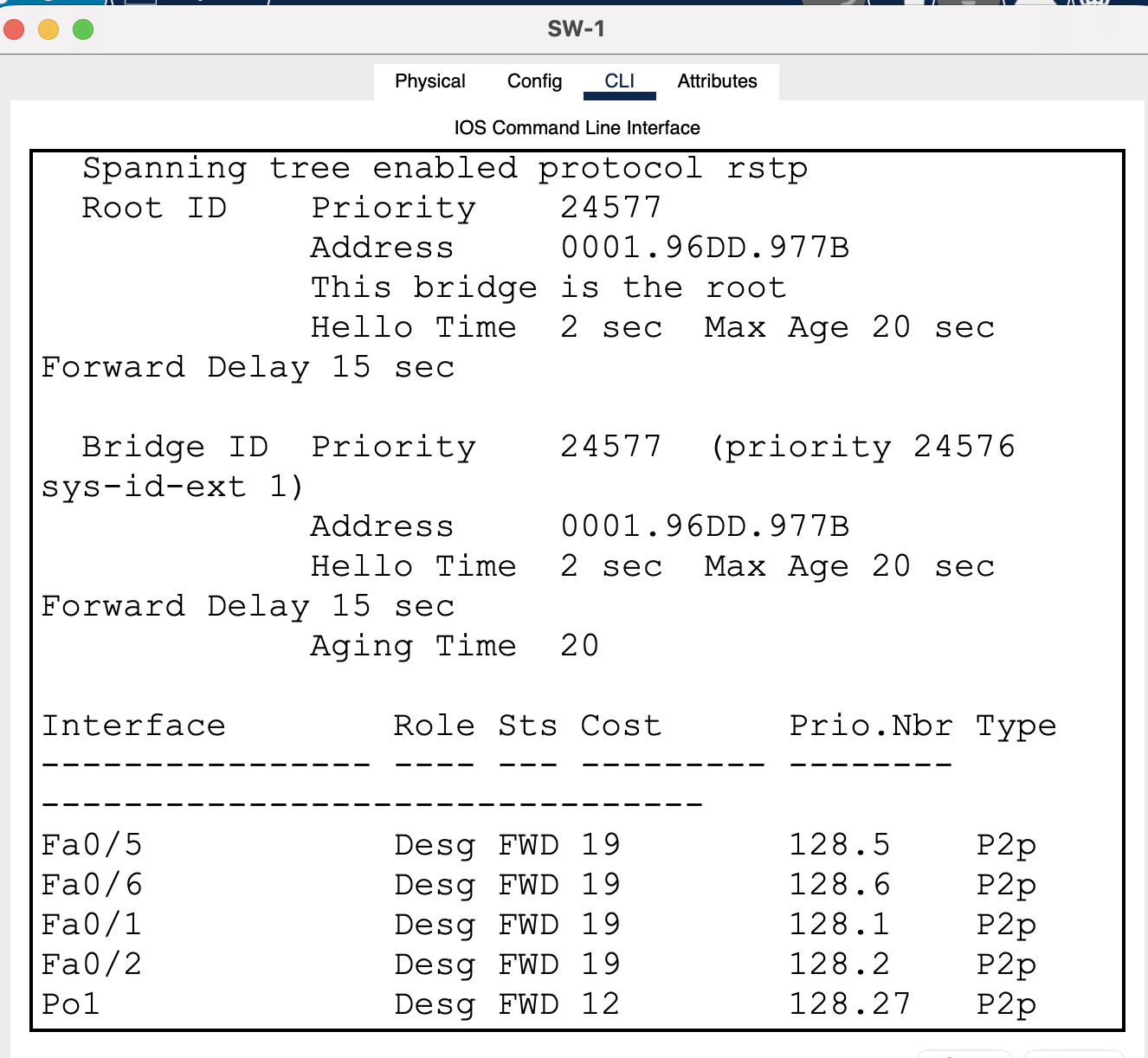

Spanning tree output
Rapid PVST+ Spanning Tree

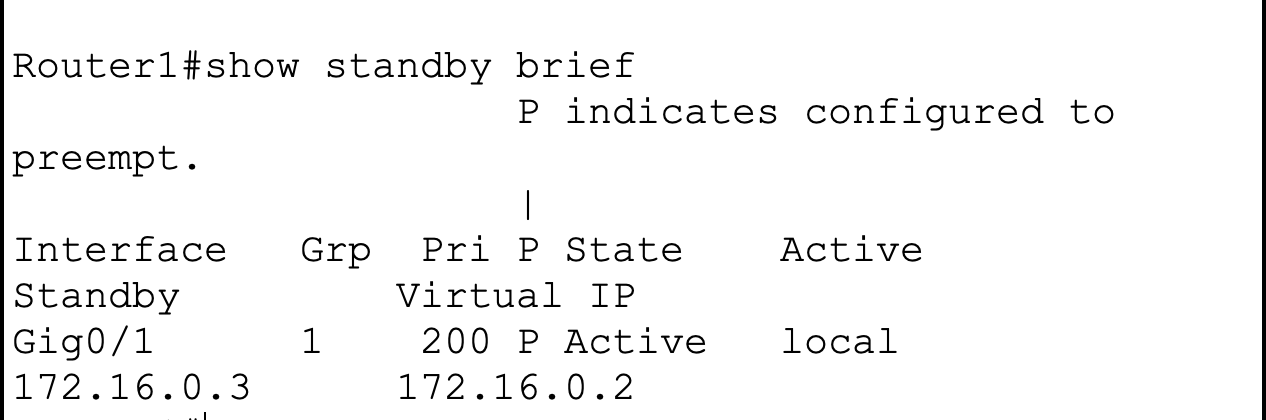

HSRP standby brief output
HSRP First-Hop Redundancy

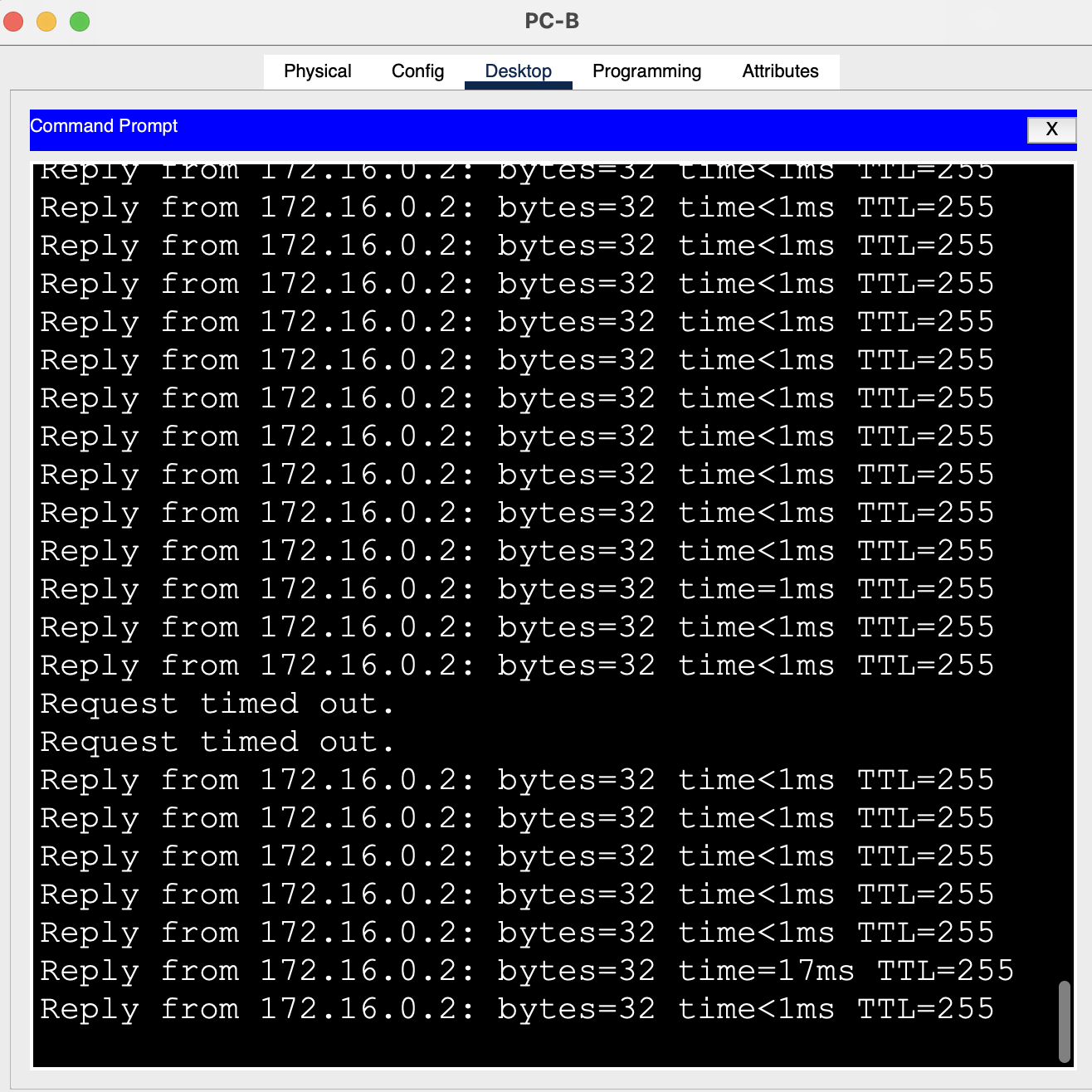

HSRP failover ping capture
Live Failover Capture

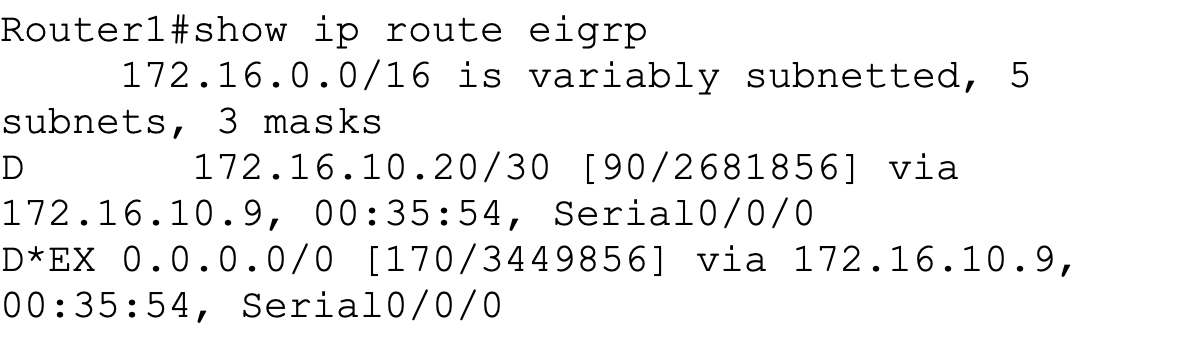

EIGRP routing table output
EIGRP Routing Table

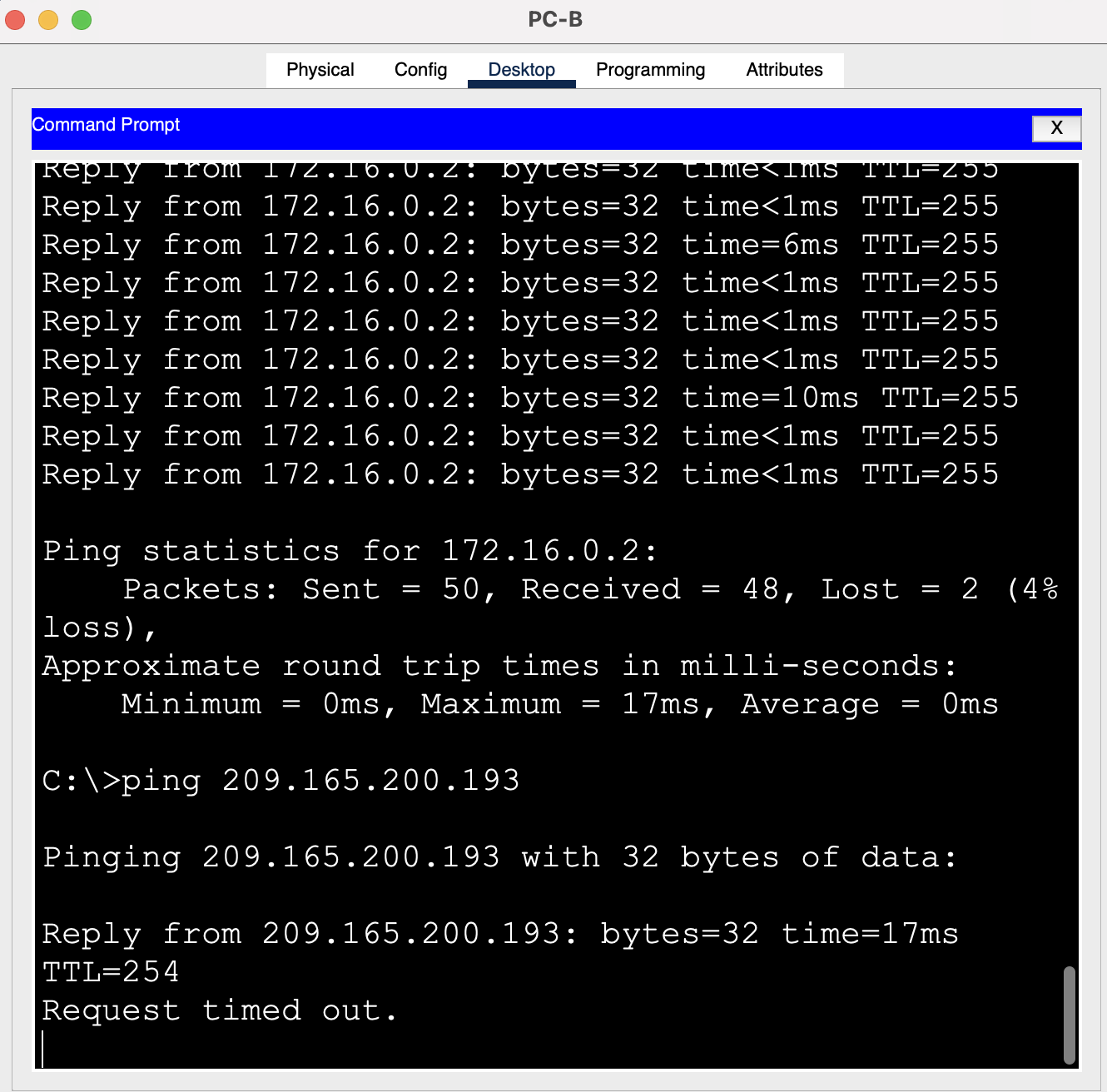

End to end reachability ping
End-to-End Reachability
View all complete labs ↗
Recognition

Honors & certifications

CompTIA A+

Industry Certification

Industry-recognized credential validating core IT, hardware, and operating-system support skills.

Dean's List

ASU W. P. Carey School of Business

Recognized for sustained academic excellence and top-tier GPA performance.

Magna Cum Laude

On Track for High Distinction

On track to graduate among the top of the class with high academic honors.

Capabilities

Capabilities and experience

Networking

  • Cisco architecture
  • Routing & switching protocols
  • Path redundancy & high availability
  • CCNA candidate

Cloud Computing

  • AWS ecosystem
  • Multi-region disaster recovery
  • Event-driven automation
  • Infrastructure resiliency

Business & Strategy

  • Applied Business & Technology Solutions
  • ASU W. P. Carey (Dec 2026)
  • Technical product thinking
  • Operations translation

Leadership Role Experience

  • Team coordination & delegation
  • Mentoring & onboarding peers
  • Cross-functional collaboration
  • Driving initiatives to completion

Project Experience

  • End-to-end project ownership
  • Requirements & scope definition
  • Stakeholder communication
  • Delivery under deadlines

Hands-On IT Experience

  • Hardware troubleshooting & repair
  • OS installation & configuration
  • Network setup & maintenance
  • System imaging & deployment

IT Helpdesk Experience

  • Tier 1 & 2 user support
  • Ticketing & issue resolution
  • Account & access management
  • Documentation & knowledge base
Get in touch

Let's build something resilient.

Open to opportunities in cloud infrastructure, systems engineering, and technical product management. Reach out anytime.

Email Me LinkedIn
